Shear-Connector

Concrete Screw

TOGE TSM Shear-Connector

Fast and economical solution for the rehabilitation of structures

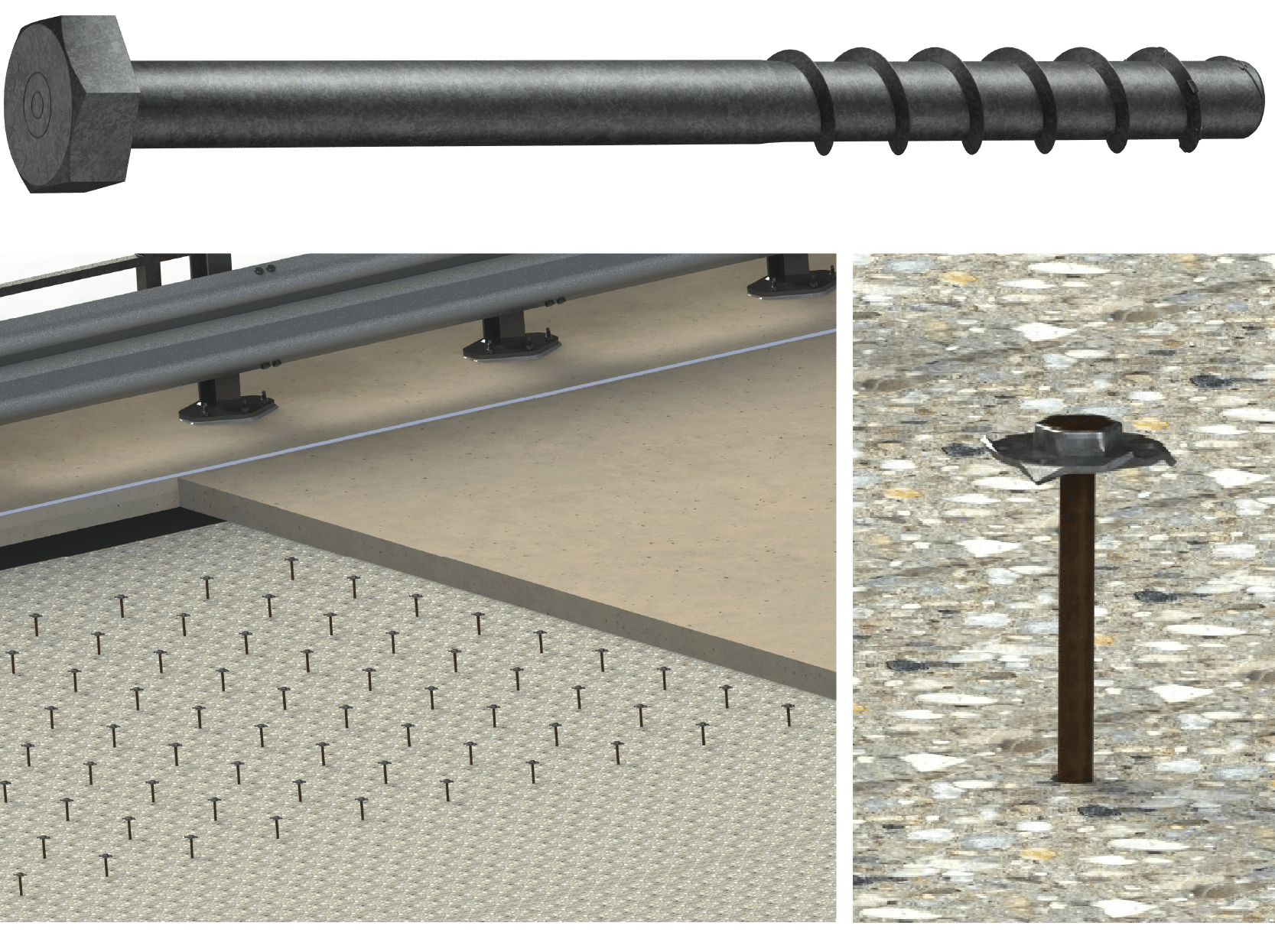

TOGE shear-connectors are a specially designed and building authority approved solution to subsequently increase the payload of concrete structures (bridge, slabs, etc.). The quick and user-friendly installation without the use of chemical admixtures allows an economical and simple rehabilitation of structures. A special plate enables easy connection of the reinforcement and can be used as an option if required.



TOGE TSM Shear-Connector – At a Glance


Approved by building authorities as a shear-connector.


Fast Installation


Force Transmission

Transmission of forces in existing concrete by undercutting technique.

Force Transmission

Transmission of forces in the new concrete via shear studs.

Accessories

Hole corrugation disc optionally serves to support or tie the rebars.

Headshapes and Materials


01 | TSM BC 12 SW 22 AB

Hexagonal head – steel, blank

01 | TSM BC 12 SW 22 AB

Hexagonal head – steel, blank


02 | TSM BC Disc

Hole corrugating disc (optional) – steel, blank

02 | TSM BC Disc

Hole corrugating disc (optional) – steel, blank



Which product is right for you?

Do you need support?
We will be happy to help!

Call us: +49 911 659 68-10


Application examples




Shear-connector under the asphalt surface

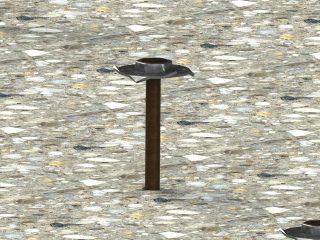

Detail


Approvals | Installation instructions | Technical information


Approval


Base Materials

Application in cracked and non-cracked concrete
of strength classes from C20/25 to C50/60.


This is how easy the installation works:

  1. Create borehole.
  2. Clean the borehole thoroughly.
  3. Discard three full strokes of composite mortar – then inject composite mortar (optional).
  4. Screw in concrete screw.
  5. Hammer spacer onto screw head (optional).

Downloads




Technical Information



General technical approval
Z-21.1-1799



General technical approval
Z-21.8-1880



European technical assessment
ETA 06/0124



European technical assessment
ETA 15/0514
