Insulating screw TOGE TIS

Insulation panel fasteners

TOGE TIS

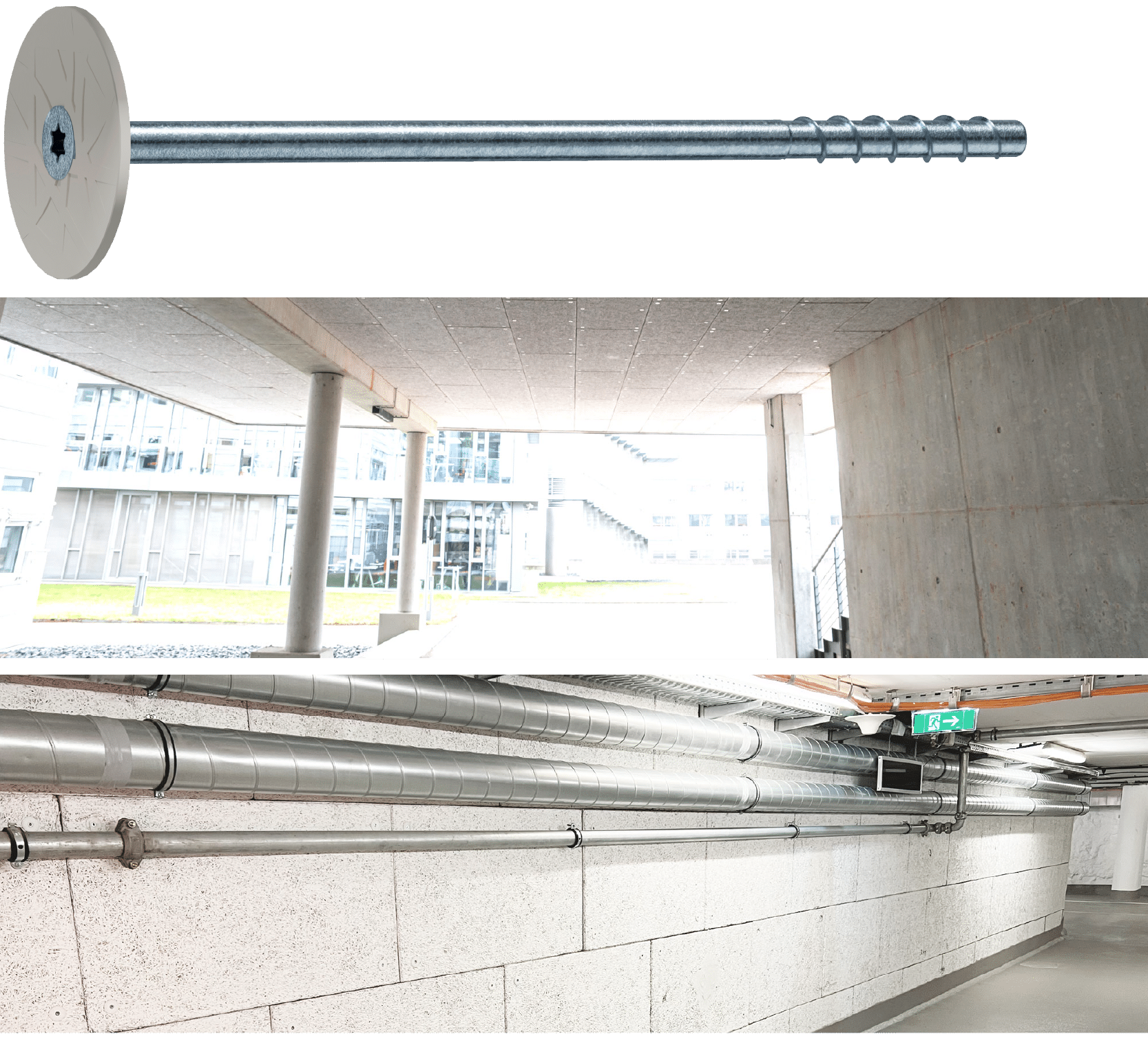

The insulating screw for cold-, heat- and fire-protection

Whether for use in dry interiors or in a damp environment – the insulating screw TOGE TIS is always the right choice: For an application in a dry environment, choose the standard version made of galvanized steel.

For use in damp environments, e.g. in underground garages or basements (corrosivity category C3), choose our special zinc lamella coating TOGE-KORR.

For fixing insulation material with a very soft surface structure, an additional plate with Ø 80mm is available.

TOGE TIS – At a glance


Cover cap

Cover caps with textured structure made of polyethylene in three different colors for a coherent look of the entire surface.

Easy Installation

The patented thread allows quick and easy installation with a standard cordless screwdriver without special tools. The TOGE TIS can be removed just as easily without leaving any residue.

No more reinforcement hits

The low embedment depths of 25 mm and 35 mm allow particularly user-friendly processing completely WITHOUT reinforcement hits.

Adjustable

The screw thread allows adjustment of the insulation panels at any time during or after installation. For an even installation pattern over the entire surface.

Fire protection

A fixed metal plate under the plastic cap ensures fire protection up to fire resistance class R120.

Fast Installation

The small drilling diameter of only 6 mm allows fast, uncomplicated installation.

Maximum thickness

Screw lengths up to 325 mm enable the fastening of insulating panels up to a thickness of 300 mm.

Variable

Two different embedment depths of 25 mm or 35 mm allow variable load bearing for different panel thicknesses.

Headshapes and Materials


01 | TIS white

Cover cap white – Steel, zinc plated

01 | TIS white

Cover cap white – Steel, zinc plated


02 | TIS beige

Cover cap beige – Steel, zinc plated

02 | TIS beige

Cover cap beige – Steel, zinc plated


03 | TIS grey

Cover cap grey – Steel, zinc plated

03 | TIS grey

Cover cap grey – Steel, zinc plated


04 | TIS KORR white

Cover cap white – Steel, zinc flake coating TOGE KORR

04 | TIS KORR white

Cover cap white – Steel, zinc flake coating TOGE KORR


05 | TIS KORR beige

Cover cap beige – Steel, zinc flake coating TOGE KORR

05 | TIS KORR beige

Cover cap beige – Steel, zinc flake coating TOGE KORR


06 | TIS KORR grey

Cover cap grey – Steel, zinc flake coating TOGE KORR

06 | TIS KORR grey

Cover cap grey – Steel, zinc flake coating TOGE KORR


07 | For fastening insulation material with very soft surface structure

Additional disc Ø 80mm – steel, zinc plated

07 | For fastening insulation material with very soft surface structure

Additional disc Ø 80mm – steel, zinc plated





Whiche product is right for you?

Do you need support?
We will be happy to help!

Call us: +49 911 659 68-54


Application Examples




Underground garage and basement walls




Underground parking and basement ceilings


Approval | Installation Instructions | Technical Information


Approval


Base Materials

Approval for concrete strength classes from C20/25 to C50/60.
Cracked and non-cracked concrete.


This is how simple the installation works

  1. Create borehole.
  2. Thoroughly clean borehole.
  3. Screw in the TOGE TIS with a standard cordless screwdriver – without special tools.
  4. The screw head must rest completely on the attachment.

Downloads




Product
Information



Technical
Data



European technical
assesment ETA-20/0779



General technical
approval Z-21.8-1971



Certificate of conformity
Z-21.8-1971



Certificate of constancy
of performance ETA-20/0779



Declaration of performance
ETA-20/0779
